CASE-B

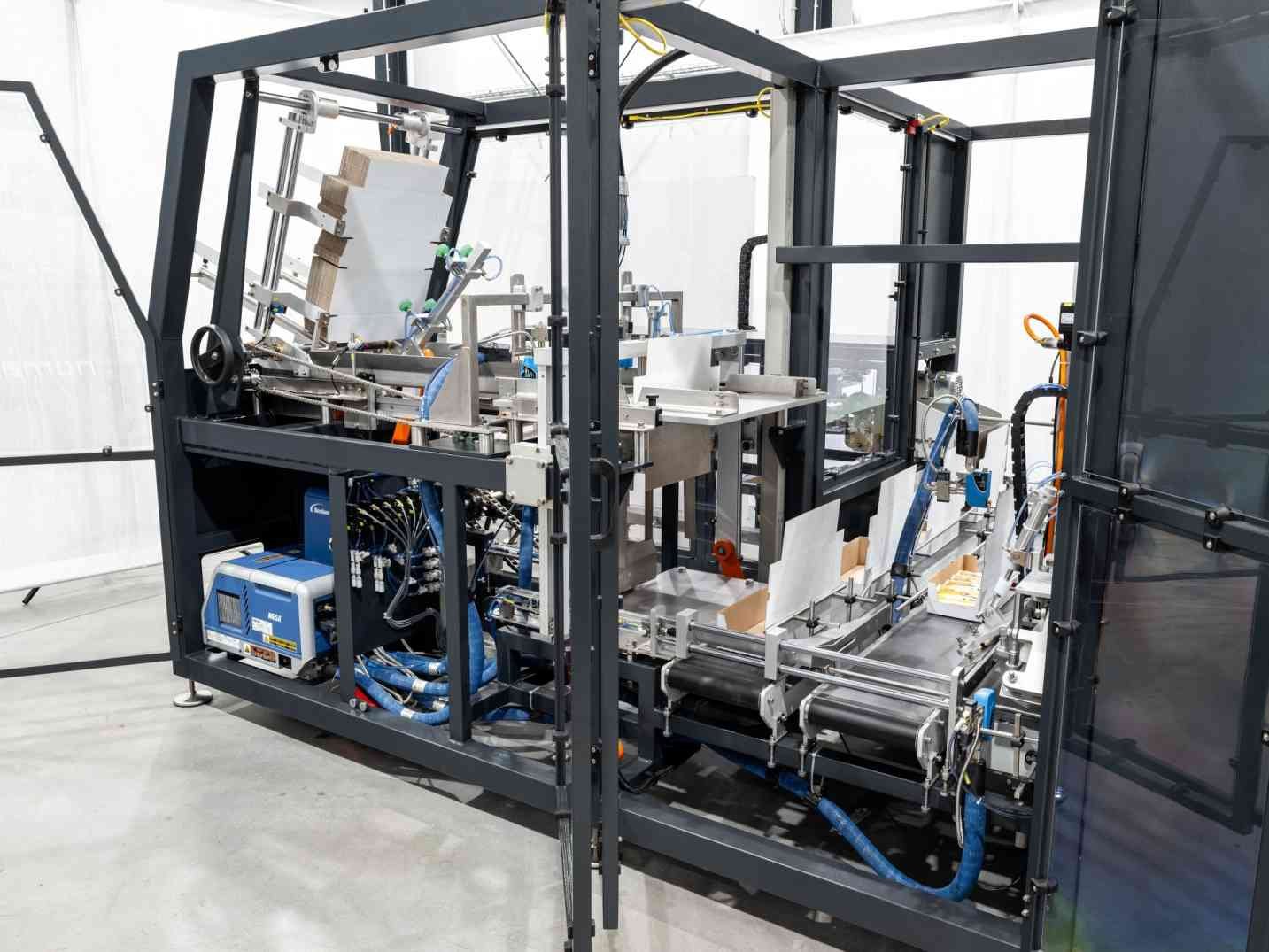

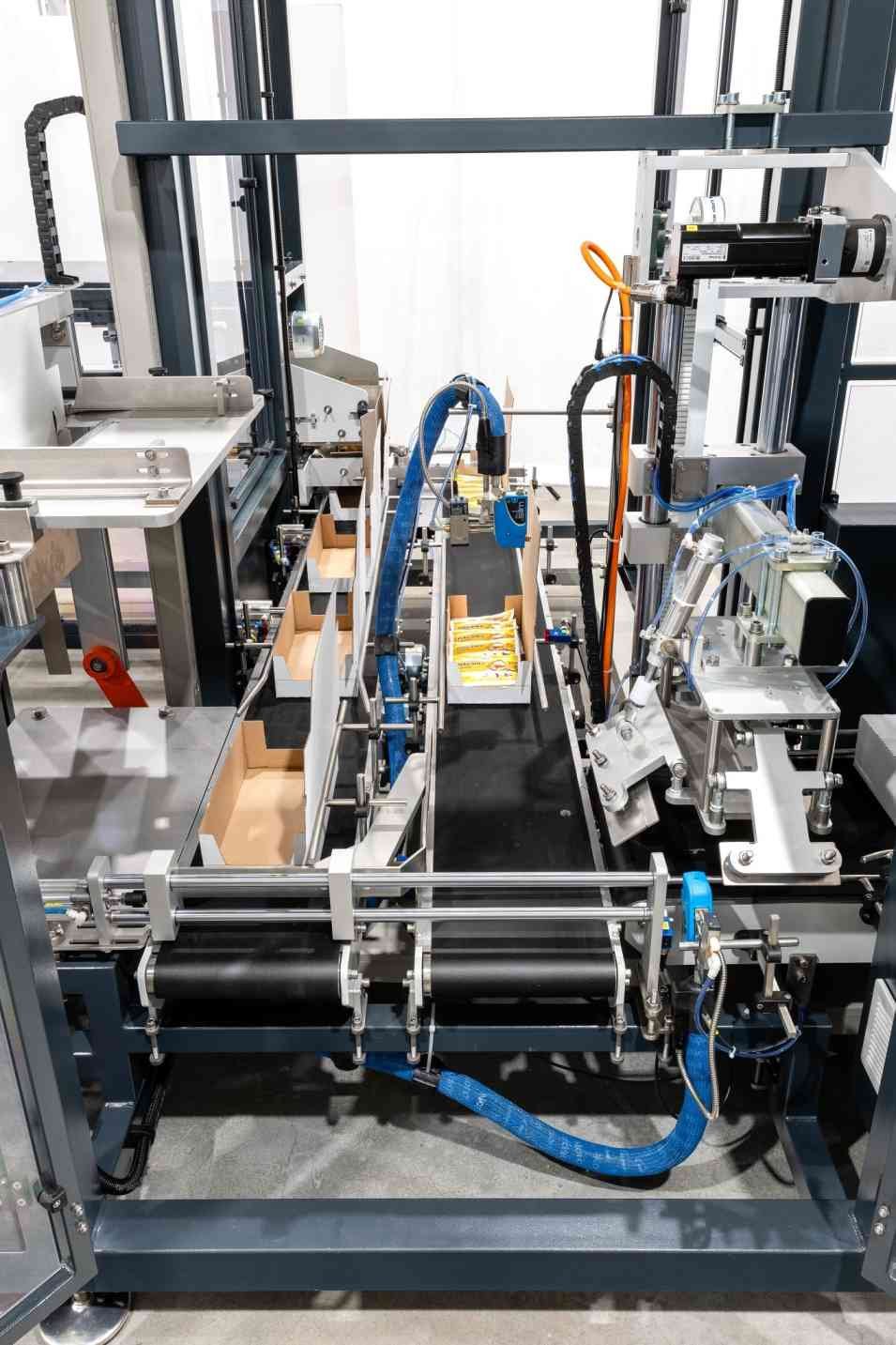

Cartoning line CASE is designed for cartoning a group of pre-filled bags, glass jars or boxes into cardboard boxes. The fully automatic line groups the required number of products according to the selected range, shapes and folds a cardboard package from blanks, into which the filled bags are fed via a dosing conveyor, which ensures accurate dosing. The box is then closed and sealed and moved to the exit conveyor for further handling. The device can work both with different sizes of cardboard boxes and trays, as well as with a wide range of filled piece products within the specified size range. All functions of the line are controlled via the touch screen. The required size of the carton is set on the adjustable formatting matrix. Drives are handled by servomotors in combination with asynchronous drives and pneumatic elements for fast and smooth operation. The carton magazine can be adjusted in 2 axes, the adjustment is carried out by hand wheels (length, width, depth of the carton). The cartons are sealed with hot melt glue with a Nordson gluing unit.

Machine output:
2300 packs/hr.

Product dimensions:
150 x 190 mm

Piece commodities:
group of filled bags, glass jars or boxes

  • CHARACTERISTIC
    • Control system:                B&R programmable, touch screen
    • Machine cycle:                  step
    • Safety features:                main switch, Emergency Stop, end switches on the door
    • Sensors:                              monitoring of individual stations and functions
    • Surface finish:                   varnished steel
    • Machine drives:                servo drives and asynchronous drives with pneumatic drives
    • Pneu components:           SMC
    • Packed products:              prepacked bags or boxes, max dimensions 150 x 190 mm (w x h)
    • Carton box dimensions:  min 200 x 105 x 70 mm, max 600 x 400 x 350 mm
  • BAG TYPES
  • PARAMETERS
    • Types of packaging: boxes (paper cardboard - blank), tray, closed carton with tear-off tape, carton with glued lid - according to the parameters of the line manufacturer
    • Carton dimensions: min. 200 x 105 x 70 mm, max. 600 x 400 x 350 mm
    • Packaged products: single, max. size 150 x 190 mm (w x h)
    • Output: up to 2300 bags/hour. (4 cartons/10 bags each)
    • Group: up to 20 pcs | individual requirement
    • Others: free configuration and error messages on the control panel
                    freely programmable control system
                    storage of up to 100 programs/parameters
                    remote diagnostics and basic service and program modification via modem
                    input, sorting and dosing conveyor for precise dosing into the grouping system
                    group unit for ejecting the batch and forming the required group for insertion into cartons
                    bag inserter and controller
                    gantry movable gripping head (horizontal movement)
                    carton tray – universal, adjustable in 2 axes (manual adjustment of carton length, width and depth)
                    device for closing cartons by gluing (Nordson)
