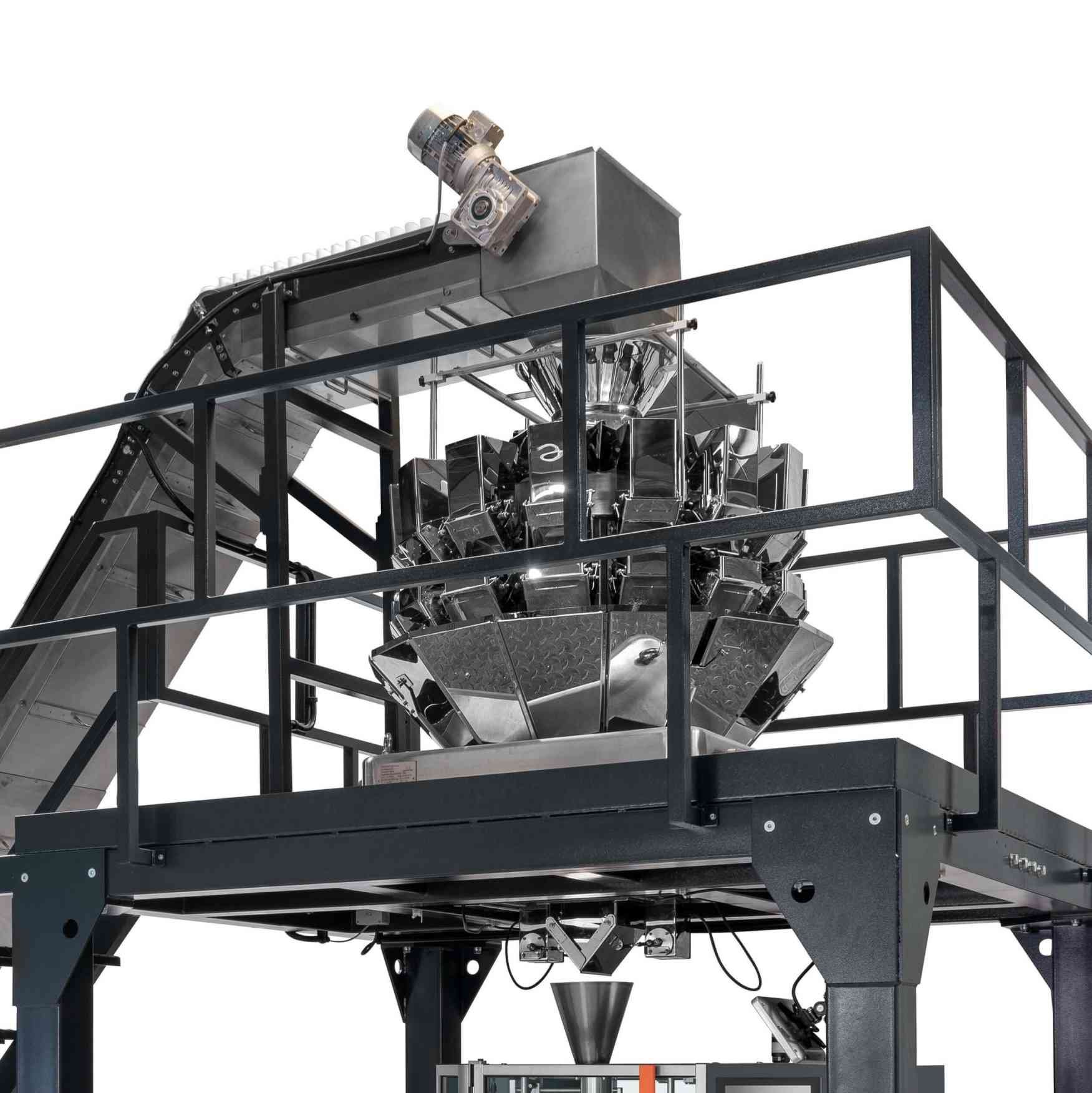

CHW214

Multihead weighers are suitable for high-speed and accurate weighing of granules, loose, piece or irregular shape products or sticky products of food and non-food applications. Products such as candy, seeds, jelly, fries, coffee, rice, pasta, nuts, puffy food, biscuits, chocolate pieces, pet food, frozen foods, bakery products, dried fruit, screws, beads, automotive parts etc. may be weighed. Each weighing bucket is possible to adjust individually.
Multihead weighers are installed as an integrated part in packaging line or with an existing packing machinery. Product is fed into the infeed funnel via a feeding or a bucket conveyor.
The product is divided into smaller group of products according to the chosen dose in the software. Each weighing bucket is equipped with a highly accurate load cell and weighs the present amount of product. A processor in the multihead weigher calculates the best combination of available weights required to achieve the desired target weight.

Device output:

120 doses/min.

Volume:
10-2000 g/ weighing pocket

Piece commodities:
nuts, frozen fruit/vegetable, pasta
Loose commodities:
salt, sugar, rice, coffee and more
Powder commodities:
ground spices, washing powder, cocoa, and more
  • SPECIFICATIONS
    • Control panel: touch screen 7”
    • Working cycle: step
    • Safety features: main switch, Emergency Stop
    • Surface: stainless steel
    • Packaged products: loose, small pieces, sticky, granules
    • Output: up to 120 doses/min
    • Power requirements: 220 V | 1500 W | 50/60 HZ | 10 A
    • Options: dimple plate | timing hopper | rotary top cone
    • Protection: IP65 waterproof and dustproof design, easy to clean and maintain
  • PARAMETERS
    • Packed amount: 10-2000 g
    • Dimensions: height 1100 mm | depth 1700 mm | width 1100 mm
    • Weight: 480 kg
    • Buckets volume: 2500 ml
    • Number of heads: 14
    • Weighing Accuracy: 0,1-2 g
    • Other: load cell level sensor control material feeding;
                   no product-no dump, auto-pause function can avoid material dropping out during running
                   single linear feeder amplitude can be auto/manual adjusted, will ensure the products easy-flowing with high accuracy
                   facility to maximize or minimize the operation angle to the size of the product
                   multilanguage control panel
                   high accuracy and high speed modes can be selected
  • DRAWING
