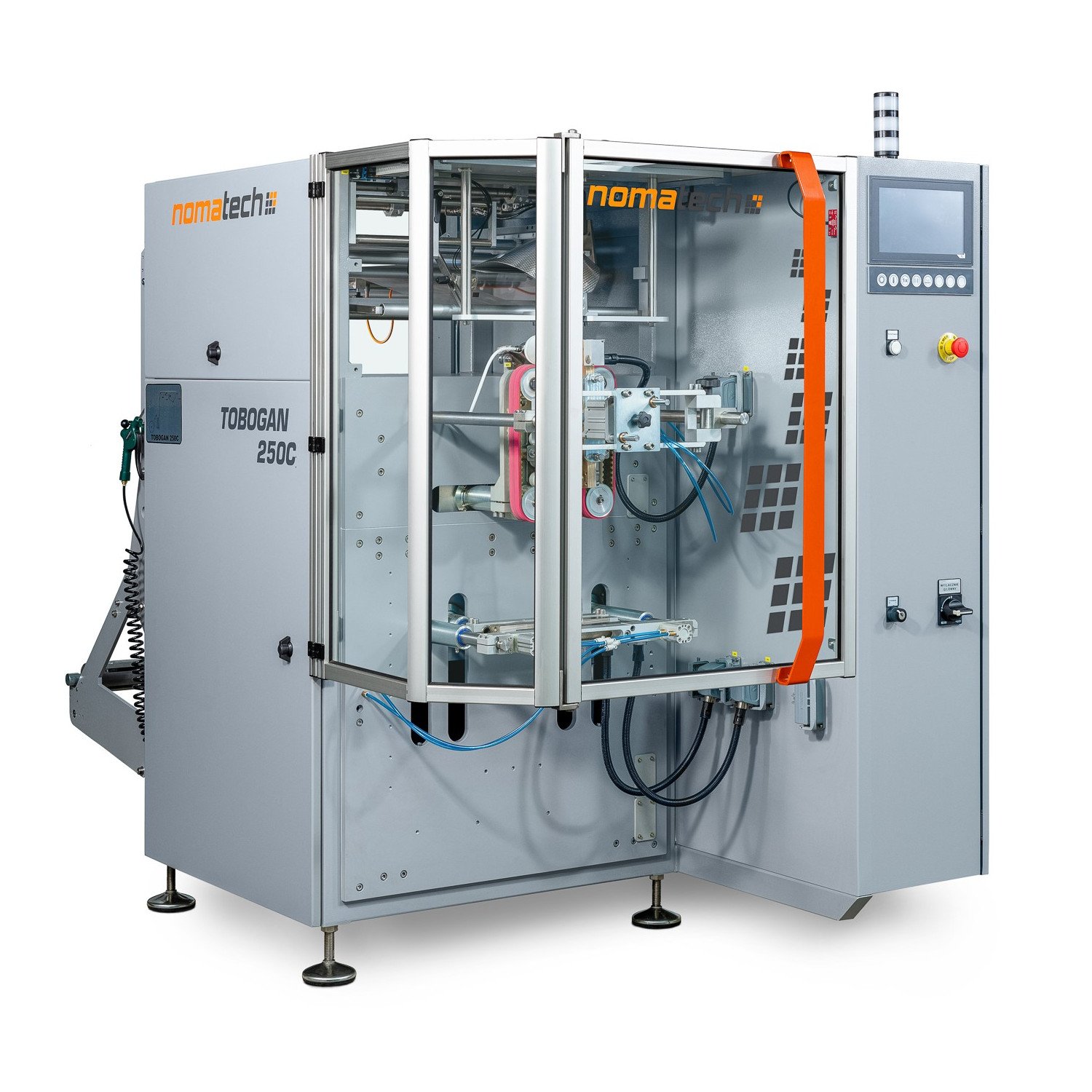

TOBOGAN 250C

The innovative technical solution, the use of quality materials and reliable components in combination with the efficiency and simplicity of operating the packaging machine represent the best solution for the needs and technical requirements of any customer. A wide range of types and sizes of bags, high performance, robust construction, and yet elegant appearance will satisfy even the most demanding.

It may be used as stand-alone or as a part of a complete filling, packaging and cartoning line.

Continuous automatic vertical packaging machine is suitable for high performance applications. The machine is equipped with a control system with the possibility of program preselection, foil centering, remote machine management, additional equipment for bag forming and other functions. Packed volume up to 5 litres.

Machine output:
160 packs/min.

Dose size:
up to 5000 ccm

Bulk commodities:
salt, coffee, sugar and other powdery products
Powder commodities:
ground spices, washing powder, cocoa, and more
Liquid commodities:
ketchup, mustard, oil and chemical liquid.

Piece commodities:
candy, frozen vegetables and others

  • CHARACTERISTIC
    • Control system:            B&R programmable, touch screen
    • Machine cycle:              continuous
    • Safety features:            main switch, Emergency Stop, end switches on the door
    • Sensors:                          foil end, foil centering, printing mark …
    • Surface:                          varnished steel, stainless steel
    • Machine drives:            decentralized, electromechanical, combined with pneumatic
    • Sealing type:                  heat (PP), impulse (PE)
    • Packaged products:     loose (difficult-flowing, dusty), small pieces, liquid
    • Types of bags:               flat, with folded bottom, with sealed edges Stabilo, with euro-hole, additionally formed block/brick bag (no possibility to apply zipper)
    • Bag forming:                 from a roll of heat or impulse sealable packing material
    • Others:                           smooth change of bag length, machine output, advance of product dose
                                               free compilation of configuration and display of error messages on the control panel
                                               storage of up to 100 programs/parameters
                                               remote diagnostics and basic service and modification of the program via modem
  • BAG TYPES
    • Pillow bag Pillow bag
    • Pillow 3SS + eurohole Pillow 3SS + eurohole
    • Pillow 3SS + eurohole + folded corners Pillow 3SS + eurohole + folded corners
    • Pillow 3SS + eurohole + ironed edges Pillow 3SS + eurohole + ironed edges
    • Pillow 3SS + ironed edges Pillow 3SS + ironed edges
    • Block bottom + carry holes Block bottom + carry holes
    • Block bottom + sealed stabilo edges Block bottom + sealed stabilo edges
    • Block bottom + sealed stabilo edges + zipper Block bottom + sealed stabilo edges + zipper
    • Brickpack Brickpack
    • Brickpack + sticker Brickpack + sticker
  • PARAMETERS
    • Bag width:                      35-250 mm, with the possibility of changing to other formats
    • Bag length:                     60-350 mm standard (max. 690 mm)
    • Packed amount:            82-3500 cc
    • Foil roll diameter:         max 450 mm
    • Foil core diameter:       60-76 mm
    • Foil width:                      max 540 mm
    • Dimensions:                   machine frame height 1600 mm | depth 1800 mm | width 1200 mm
    • Weight:                            800 kg
    • Mechanical output:      up to 160 bags/min.
    • Output with dosing:     depending on product type and packed amount
  • ACCESSORY
    • dosing equipment: volumetric, auger, liquid pumps, linear weighers, combination weighers
    • conveyors: feeding, belt, screw, exit
    • bags: folded bottom, sealed edges, euro hole/hanging hole, block bag with advertising sticker, bag chains
    • marking device (date, bar code, expiry date, etc.)
    • labelling equipment
    • bags counter
    • checkweighers
    • metal detectors
    • system for cross seal precut (easy opening)
    • seal perforation - cutting of bag chains with X pieces
    • device for punching a euro hole or a round hole for hanging
    • device for filling bags with inert gas
    • device for extracting excess air from bags
    • inclusion of the machine in a complete line of group packaging and palletising
    • remote diagnostics and basic service of the machine through a modem via telephone line depending on the selected type of control system
  • DRAWING
