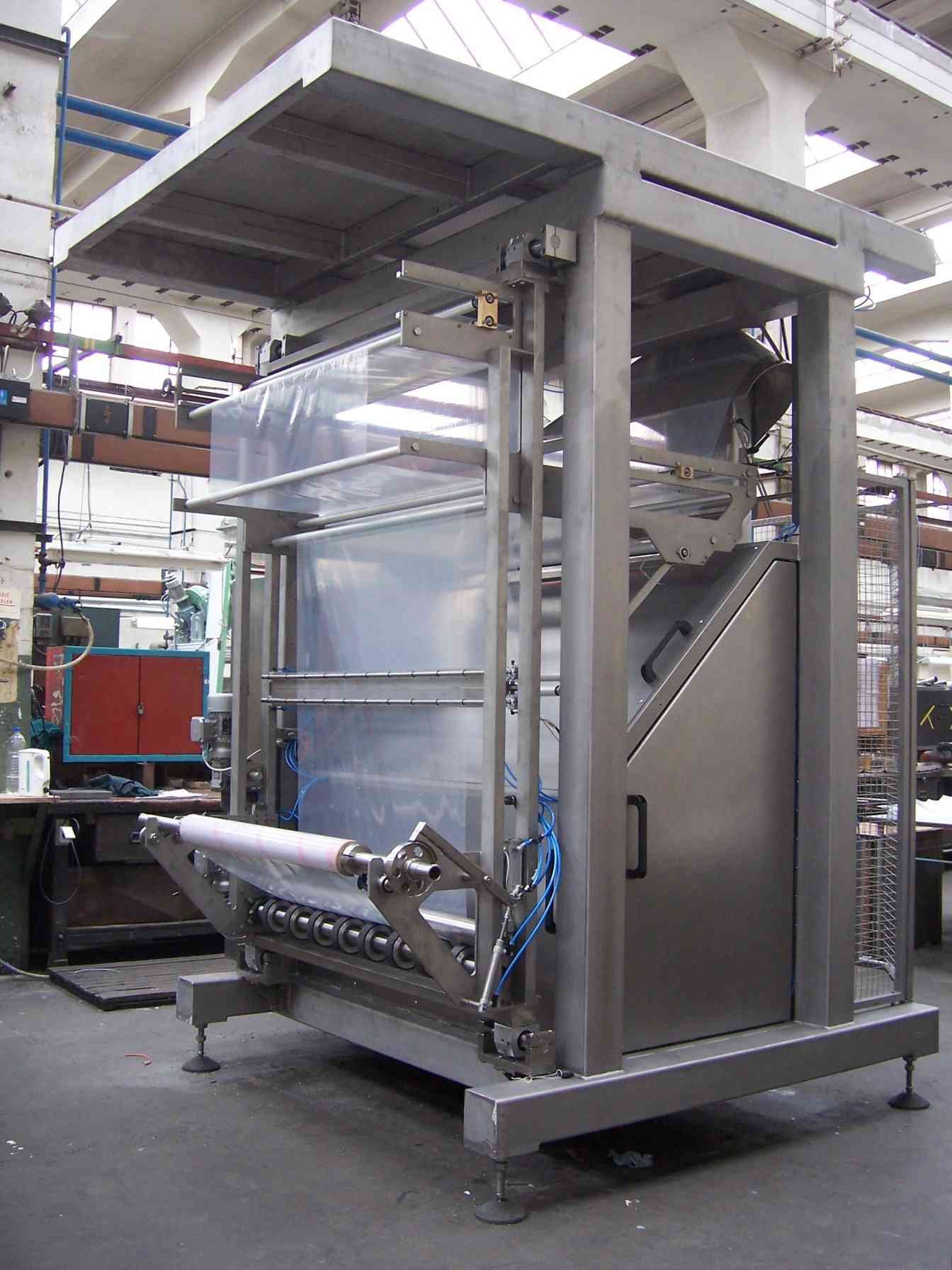

TOBOGAN 650

Our most robust vertical packaging machine for packing large-volume bags from a roll of heat or pulse sealable packaging material is Tobogan 650 that automatically fills the required dose of product and reliably closes the bag. The use of quality materials and proven components in combination with the ease of use of the packaging machine is a great solution for the production of large bags with small-piece and bulk materials. The machine forms, seals, fills bags with a capacity of up to 80 litres and forwards them for further manipulation. The machine can work independently or it can be part of a complete packaging line together with palletising.

Machine output:
20 packs/min.

Dose size:
up to 80 000 ccm

Loose commodities:
sugar, salt, coffee and other loose products
Powder commodities:
flour, ground spices, washing powder, cocoa and more
Liquid commodities:
ketchup, mustard, oil and other liquids

Piece commodities:
candies, pasta, legumes, frozen vegetables and more

  • SPECIFICATIONS
    • Control system:            B&R programmable, touch screen
    • Machine cycle:             discontinuous
    • Safety features:           main switch, Emergency Stop, end switches on the door
    • Sensors:                         foil end, foil centering, printing mark
    • Surface:                          varnished steel, stainless steel
    • Machine drives:           decentralized, electromechanical, combined with pneumatic
    • Sealing type:                heat (PP), impulse (PE)
    • Packaged products:    loose (difficult-flowing, dusty), small pieces, liquid
    • Bag types:                     bulk, large volume bags
    • Bag forming:                from a roll of heat or impulse sealable packing material
    • Other:                            smooth change of bag length, machine output, advance of product dose
                                              free compilation of configuration and display of error messages on the control panel
                                              storage of up to 100 programs / parameters
                                              remote diagnostics and basic service and modification of the program via modem
  • BAG TYPES
    • Pillow 3SS + eurohole + folded corners Pillow 3SS + eurohole + folded corners
    • Pillow 3SS + eurohole + ironed edges Pillow 3SS + eurohole + ironed edges
    • Pillow 3SS + ironed edges Pillow 3SS + ironed edges
    • Block bottom + carry holes Block bottom + carry holes
  • PARAMETERS
    • Bag width:                       100-620 mm, with the possibility of changing to other formats
    • Bag length:                      100-1000 mm
    • Foil roll diameter:          max 600 mm
    • Foil core diameter:        60-76 mm
    • Foil width:                       max 1350 mm
    • Dimensions:                    frame height 3100 mm / depth 2600 mm / width 2000 mm
    • Weight:                            1200 kg
    • Dose volume:                  max 80000 ccm
    • Mechanical output:       up to 20 bags/min.
    • Output with dosing:      depending on product type, packing material and packed amount
  • ACCESSORIES
    • dosing equipment: volumetric, auger, liquid pumps, linear weighers, combination weighers
    • conveyors: feeding, belt, screw, exit
    • bags: with folded bottom, carry holes,
    • marking device (date, bar code, expiry date, etc.)
    • labelling equipment
    • bags counter
    • device for punching bags for removal of excess air
    • device for filling bags with inert gas

Are you interested in our vertical packaging machine TOBOGAN 650?

Daniel Houdek
You are certain to choose from our wide portfolio of packaging equipment. I will help you recommend the most suitable solution. Contact me.
Daniel Houdek - Sales representative
