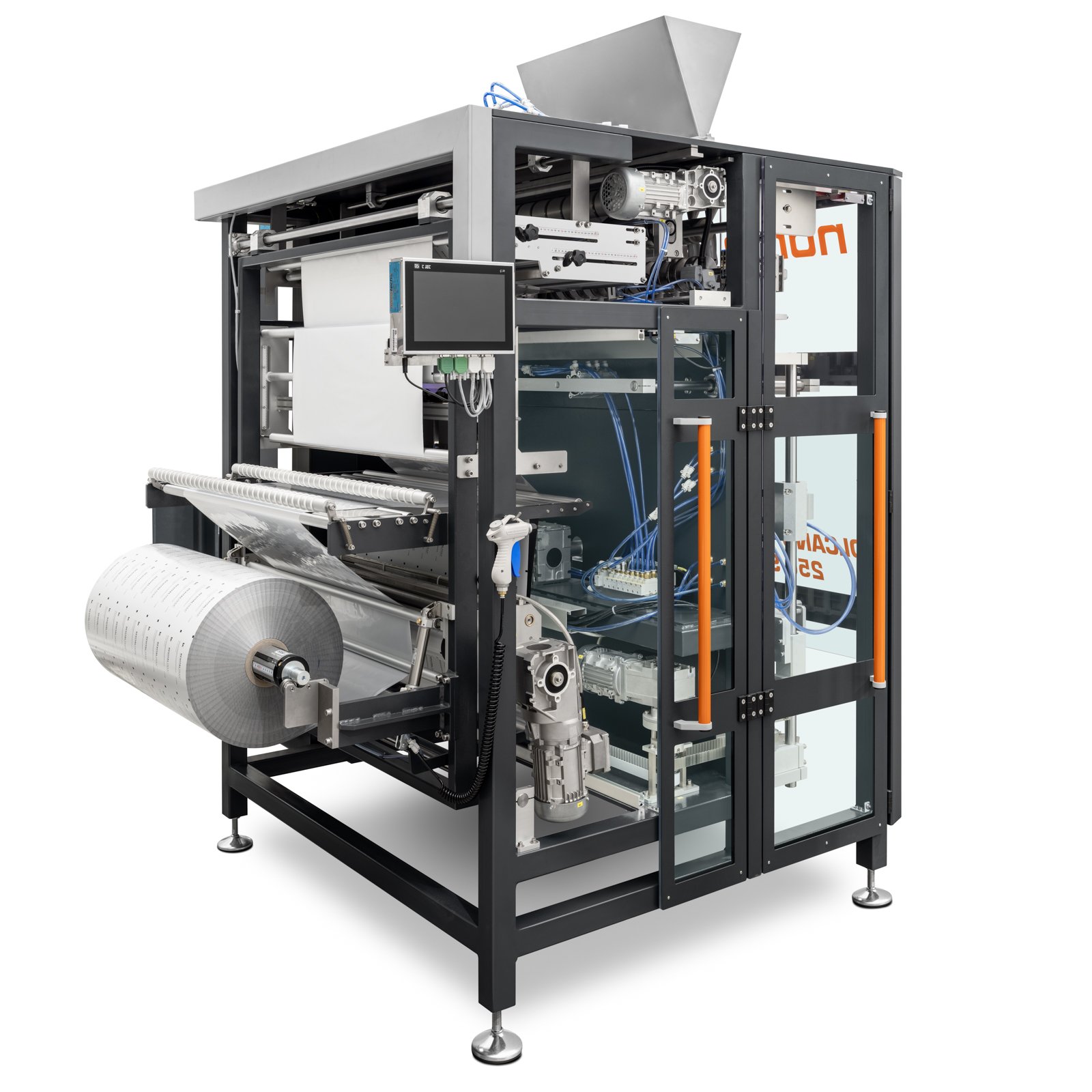

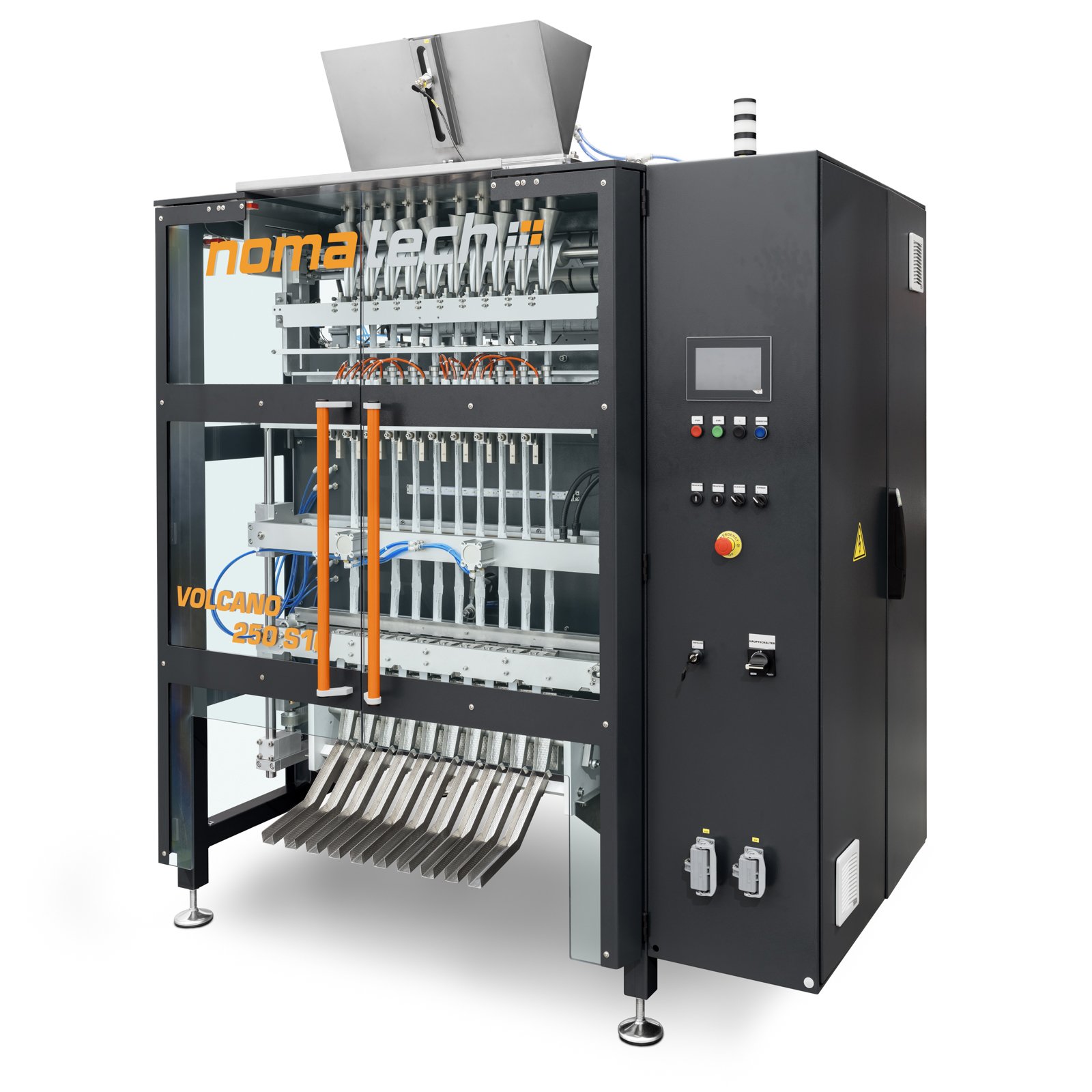

VOLCANO 250S10 | PYRAMID

High-performance 10-lane packaging machine, able to produce a large number of single portion stick packs in a very short time thanks to the number of filling lanes. Quality materials, proven components and minimal maintenance requirements together with high performance will convince everyone. Automatic foil centring, remote management or simple intuitive operation is a standard. This packaging machine is suitable for packing loose, piece and liquid products into single-portion stick packs formed from a roll of heat-sealable packaging material with simultaneous product filling and bag closing. The packaging machine is equipped with a control system with the possibility of program preselection, additional devices for shaping bags and other functions. The dimensions of the bags are individual, the packaging machine is tailor-made in accordance to customer´s requirements.

Machine output:
500 bags/minute

Dose size:
individual

Bulk commodities:
sugar, salt, coffee, sugar and other powdery products
Powder commodities:
ground spices, washing powder, cocoa, and more
Liquid commodities:
ketchup, mustard, oil and chemical liquid.

Piece commodities:
candy, frozen vegetables and others

  • SPECIFICATIONS
    • Control system:               B&R programmable, touch screen
    • Machine cycle:                 step
    • Safety features:               main switch, Emergency Stop, end switches on the door
    • Sensors:                            monitoring of product and cartons in individual stations of the machine
    • Surface:                             varnished steel, stainless steel
    • Machine drives:              decentralized, electromechanical, combined with pneumatic
    • Type of sealing:               heat
    • Bag forming:                    from a roll of heat or impulse sealable packing material
    • Bag types:                         stick pack, flat
    • Packed products:            loose, liquid, small piece
    • No. of filling lanes:         10



  • BAG TYPES
    • Sickpack Sickpack
    • Stickpack zig zag Stickpack zig zag
    • Stickpack horizontal line Stickpack horizontal line
    • Stickpack smooth seal Stickpack smooth seal
    • Stickpack precut + shape Stickpack precut + shape
    • Pyramidal tetraedr - zig zag Pyramidal tetraedr - zig zag
    • Pyramidal tetraedr - vertical precut Pyramidal tetraedr - vertical precut
    • Pyramidal tetraedr - horizontal line Pyramidal tetraedr - horizontal line
    • Pyramidal tetraedr - smooth seal Pyramidal tetraedr - smooth seal
    • Pyramidal tetraedr - precut+shape Pyramidal tetraedr - precut+shape
  • PARAMETERS
    • Dimensions:                     machine frame height 1600 mm / depth 2100 mm / width 1200 mm
    • Weight:                              800 kg
    • Bag width:                        10-35 mm, with the possibility to change to other formats
    • Bag length:                       60-150 mm standard
    • Foil roll diameter:           max 450 mm
    • Foil core diameter:         60-76 mm
    • Foil width:                         max 540 mm
    • Mechanical output:        up to 500 bags/min.
    • Output with dosing:       depending on product type, bag size and packed amount
    • Other:                                free compilation of configuration and display of error messages on the control panel
                                                  programmable control system
                                                  storage of up to 100 programs / parameters
                                                  remote diagnostics and basic service and modification of the program via modem
  • ACCESSORY
    • dosing equipment: volumetric, auger, liquid pumps, linear weighers, combination weighers
    • conveyors: feeding, belt, screw, exit
    • marking device (date, bar code, expiry date, etc.)
    • labelling equipment
    • bags counter
    • checkweighers
    • metal detectors
    • system for cross seal precut (easy opening)
    • seal perforation - cutting of bag chains with X pieces
    • device for punching a euro hole or a round hole for hanging
    • device for filling bags with inert gas
    • device for extracting excess air from bags
  • DRAWING

Do you have any questions about our multilane packaging machine VOLCANO 250S10 | PYRAMID? Please contact us.
