TOBOGAN 250 STABILO

The innovative technical solution, the use of quality materials and reliable components in combination with the efficiency and simplicity of operating the packaging machine represent the best solution for the needs and technical requirements of any customer. A wide range of types and sizes of bags, high performance, robust construction, and yet elegant appearance will satisfy even the most demanding.

Those packaging machines are suitable for all types of production requirements, for the creation of bags made from a roll of heat-sealable packaging material with simultaneous automatic filling of goods and closing the bag.

Machine output:
50 packs/min.

Dose size:
up to 5000 ccm

Bulk commodities:
salt, coffee, sugar and other loose products
Powder commodities:
ground spices, washing powder, cocoa, flour and more
Liquid commodities:
ketchup, mustard, oil and other liquid

Piece commodities:
candy, pasta, chips, frozen vegetables and others

  • CHARACTERISTIC
    • Control system:            B&R programmable, touch screen
    • Machine cycle:              discontinuous
    • Safety features:            main switch, Emergency Stop, end switches on the door
    • Sensors:                          foil end, foil centering, printing mark …
    • Surface:                           varnished steel, stainless steel
    • Machine drives:            decentralized, electromechanical, combined with pneumatic
    • Sealing type:                  heat (PP), impulse (PE)
    • Packaged products:     loose (difficult-flowing, dusty), small pieces, liquid
    • Types of bags:                flat, with folded bottom, with euro-hole, additionally formed block bag, possible to apply zipper
    • Bag forming:                  from a roll of heat or impulse sealable packing material
    • Others:                            smooth change of bag length, machine output, advance of product dose
                                                free compilation of configuration and display of error messages on the control panel
                                                ​​​​​​storage of up to 100 programs / parameters
                                                remote diagnostics and basic service and modification of the program via modem
  • BAG TYPES
    • Pillow bag Pillow bag
    • Pillow 3SS + eurohole Pillow 3SS + eurohole
    • Pillow 3SS + eurohole + folded corners Pillow 3SS + eurohole + folded corners
    • Pillow 3SS + block bottom Pillow 3SS + block bottom
    • Block bottom + carry holes Block bottom + carry holes
    • Block bottom + sealed stabilo edges Block bottom + sealed stabilo edges
    • Block bottom + sealed stabilo edges + zipper Block bottom + sealed stabilo edges + zipper
  • PARAMETERS
    • Bag width:                      35-250 mm, with the possibility of changing to other formats
    • Bag length:                     60-320 mm standard (max. 640 mm, e.i. 2 steps)
    • Foil roll diameter:         max 450 mm
    • Foil core diameter:       60-76 mm
    • Foil width:                       max 540 mm
    • Dimensions:                   machine frame height 1600 mm | depth 1800 mm | width 1200 mm
    • Weight:                            800 kg
    • Mechanical output:      up to 60 bags/min.
    • Output with dosing:     depending on product type, packing material and packed amount
  • ACCESSORY
    • dosing equipment: volumetric, auger, liquid pumps, linear weighers, combination weighers
    • conveyors: feeding, belt, screw, exit
    • marking device (date, bar code, expiry date, etc.)
    • labelling equipmentbags counter
    • checkweighers
    • metal detectors
    • system for cross seal precut (easy opening)
    • seal perforation - cutting of bag chains with X pieces
    • device for punching a euro hole or a round hole for hanging
    • device for filling bags with inert gas
    • device for extracting excess air from bags
    • inclusion of the machine in a complete line of group packaging and palletising

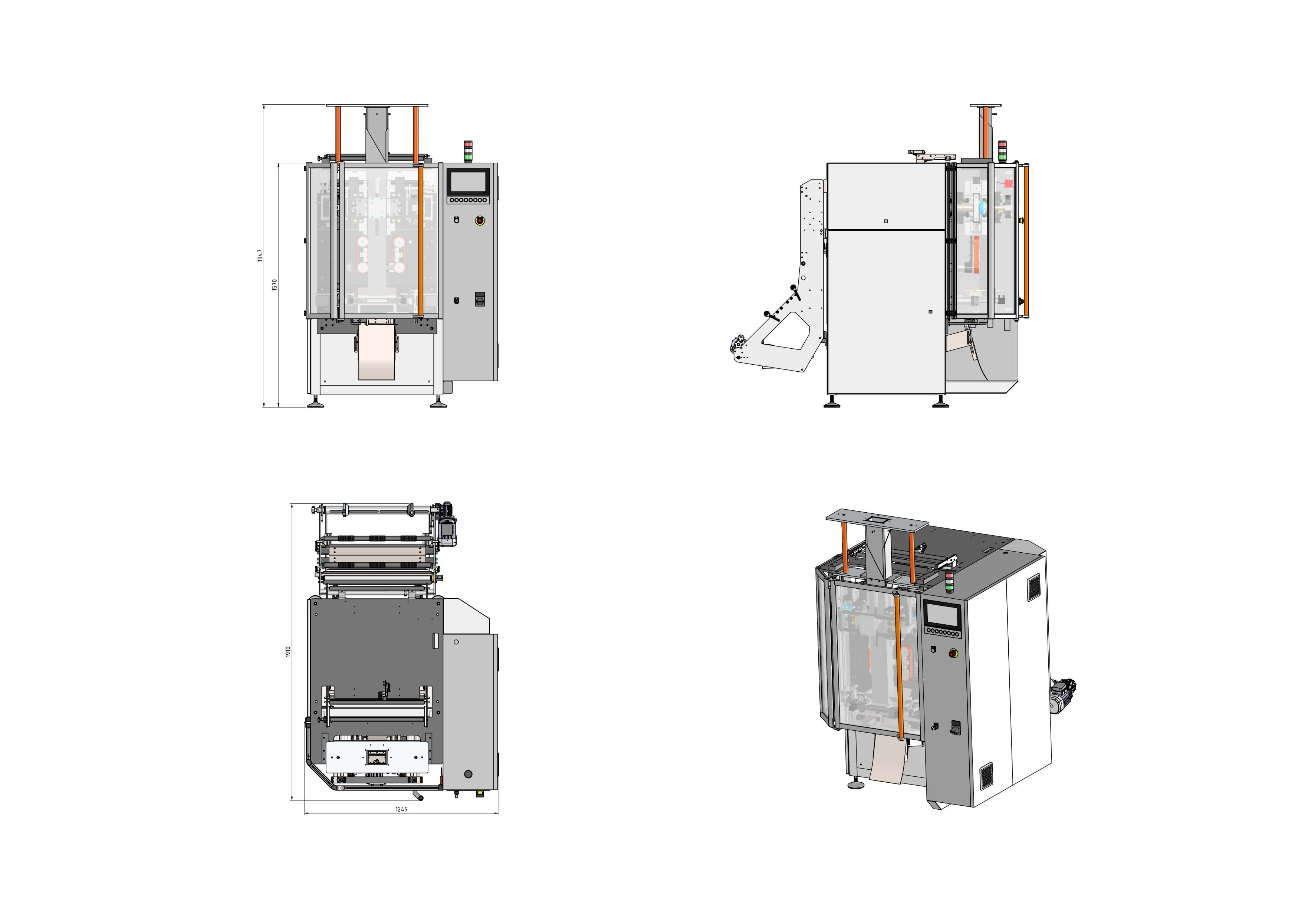

  • DRAWING

Are you interested in our vertical packaging machine TOBOGAN 250 STABILO?

Herbert Zirm
I will recommend the most suitable packaging, cartoning or bagging equipment from our production program and propose a solution according to a specific project.
Herbert Zirm - Sales representative
